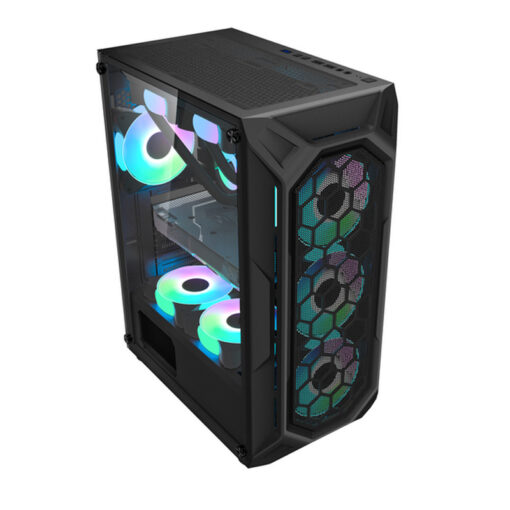

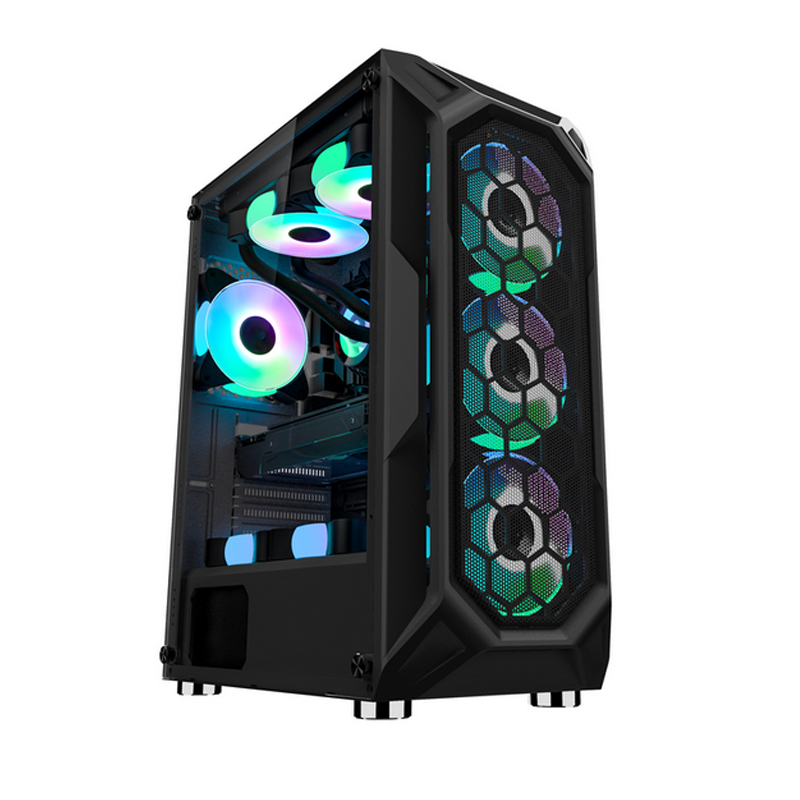

Model No.:8601
tempered glass atx gaming case type-c computer gaming casing mid tower case gamer
Thickness:0.5mm
Size:L335*W210*H468mm
40HQ q’ty:1150pcs
| Motherboard | E-ATX,ATX,M-ATX,ITX |
| Form factor PSU | Standard ATX |
| Structure size(mm) | L335*W210*H468mm |
| Case size(mm) | L378*W210*H480mm（with feet） |
| Carton size(mm) | L530*W265*H425mm |
| G.W & N.W | 5.0Kg & 4.2Kg |
| Material-Front Panel | ABS |
| Material-Steel | 0.5mm SPCC black coating |
| Material-Side Panel | tempered glass panel & metal panel |
| Package | A=A & Foam |
| Interface and Slots>> | |
| I/O Interface | 2*USB2.0+1*3.0USB,HD Audio |
| Expansion Slots | 7pcs |
| Drive Bay Capacity>> | |
| 5.25inch | 0 |
| 3.5inch | 2 |
| 2.5inch | 3 |
| Cooling System(mm)>>Fan support | |
| Fan System | Front: 3*12cm/14cm, Rear:1*12cm,top:2*12cm/14cm,bottom:2*12cm |
| Cooling solutions | Air channels(front ,side, rear) |
| Maximum Dimensions(mm)>> | |
| CPU cooler | Maximum CPU Cooler Height 165mm |
| PSU(on the bottom) | Maximum Length 140mm |
| Graphic card | Maximum GPU/PCI Card Length 320mm |
